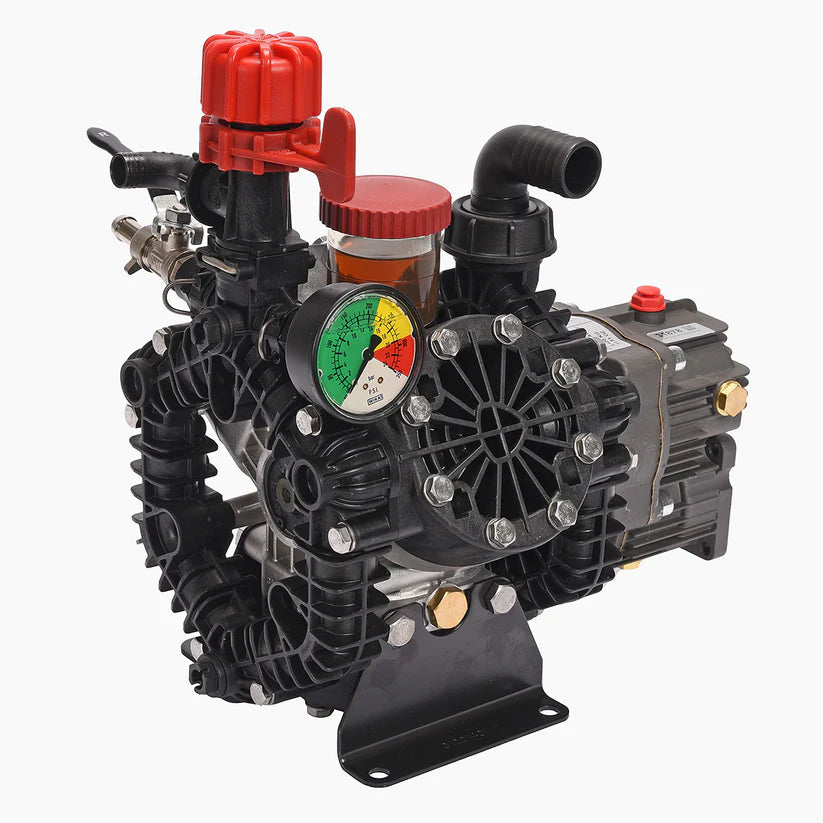

AR 45 SOFTWASH PUMP

Annovi Reverberi AR45LFP-GR-GCI liquid fertilizer and pesticide low pressure diaphragm pump. Three semi-hydraulic diaphragms. Single male cardan shaft. For use in the gardening or professional agricultural sectors, base-mounted in combination with PTO’s, electric motors or internal combustion engines for gardening, and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.

• Semi-hydraulic three-diaphragm pump, for use with aggressive products in low pressure systems
• Parts in contact with the liquids being pumped are: reinforced polypropylene, Kynar and AISI 316 L. Diaphragms in BlueFlex and Viton®
• Three-diaphragm design for smoother operation, lower pulsation and less hammer effect
• Crankcase shell is precision die cast. Splash lubricated oiling system with a clear oil tank for visual oil level checking
• Remote level monitoring sensor on request
• Oil drainage stopper
• Piston and ring design offers an efficient “oil cushion” system to protect the diaphragm
• New-design diaphragms and keepers prevent contact tearing even in heavy-duty operating conditions
• Spherical sector profile valves offer lower flow resistance and improved volumetric efficiency
• Heavy duty mounting rails, AISI 304 SST fasteners. Drive types: Cardan shaft or keyed solid shaft Available with reduction gearbox for internal combustion engines, pulley fixtures or flanges for hydraulic motors.
